Introduction

本文旨在记录作者完成课程任务 HITSZ os-lab3 的过程，可供参考。

本实验需要完成的内容包括

  1. 修改内存分配器（主要修改 kernel/kalloc.c），使多个 CPU 不必总是争用同一条空闲页链表和同一把 kmem.lock。
  2. 主要修改 kernel/bio.c，将原本的全局锁改为细粒度锁，可采取哈希桶等办法

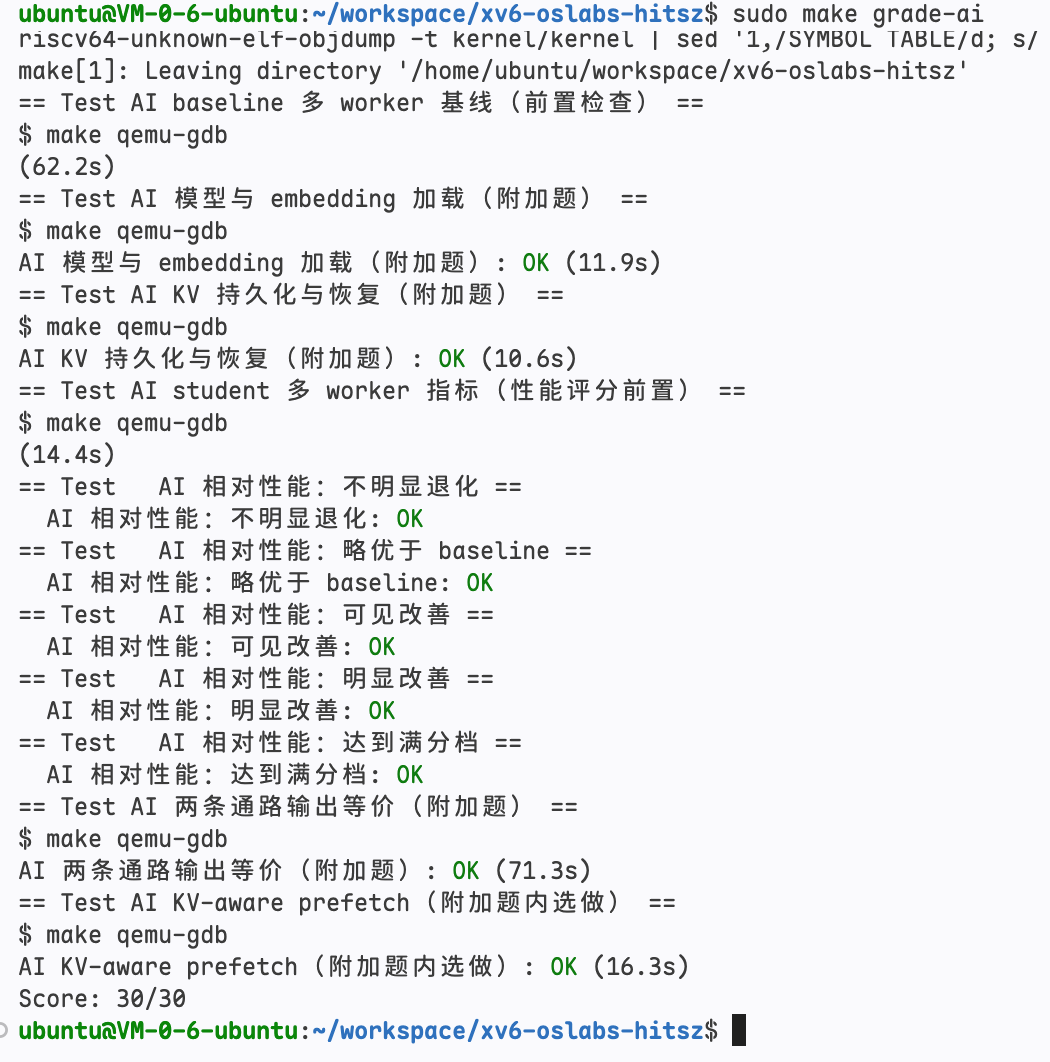

  3. AI 推理服务附加题：使用缓存和预存取优化原本的baseline

实验仓库链接如下

xv6-HITSZ

指导书链接如下（需校内网）

xv6-HITSZ-guidance

仓库内有多个 lab 分支，本文所提的 lab1 对应的分支切换方法如下

git clone git@gitee.com:ftutorials/xv6-oslabs-hitsz.git
git checkout lock

任务零：回答问题

这些内容应写入实验报告，建议结合示意图，用简短但准确的语言回答：

内存分配器

问：什么是内存分配器？它的作用是什么？

答：内存分配器是内核中负责管理物理内存页的组件，用于跟踪哪些物理页空闲、哪些已占用；为内核对象、页表、用户进程等提供空闲物理页；回收不再使用的页，使内存可复用；在多核环境下保证分配/释放的并发安全。

问：xv6 的内存分配器核心数据结构是什么？主要有哪些操作（函数）？

答：核心数据结构是空闲页链表，主要操作包括 kinit(), kalloc(), kfree() 等

struct run：空闲页链表节点。空闲页本身被拿来存放这个节点，所以不额外占内存。 struct kmem：包含一把自旋锁和一个空闲页链表。

问：为什么“每 CPU 一条空闲页链表”能够减少锁竞争？

答：把原来的一条全局 freelist + 一把全局锁改成每个 CPU 一条 freelist + 每条链表各自的锁，多数情况下应该是

  • CPU0 只动自己的链表；
  • CPU1 只动自己的链表；
  • CPU2 只动自己的链表；
  • 它们互相之间不必总挤在同一把锁上。

这样，很多原本“必须串行”的操作，就能并行了。当然，这种设计不是没有代价：

  • 某个 CPU 可能很快把自己的空闲页用光；
  • 另一个 CPU 却还剩很多页。

所以通常还需要补一个“偷页 / 借页”逻辑：本地链表空了，再去其他 CPU 的链表里找可用页。

磁盘缓存

问：什么是磁盘缓存？它的作用是什么？

答：xv6 的文件系统最终是和磁盘打交道的，而磁盘访问比内存慢得多。如果每次读文件都直接去磁盘拿数据，会非常慢。所以系统通常会把“最近用过、可能还会再用”的磁盘块先缓存在内存里。这就是 Buffer Cache 的作用。

从调用关系看，buffer cache 正好夹在 文件系统 和 磁盘驱动 之间：

  • 对上，文件系统里的 inode、目录、日志等代码不会直接操作磁盘，而是通过 bread() / bwrite() 这类接口按块读写数据；
  • 对下，buffer cache 真正需要把某个块从磁盘读入、或把修改后的块写回磁盘时，又会继续调用底层磁盘驱动；
  • 因此，它本质上就是一层“位于文件系统之下、位于磁盘驱动之上”的块缓存。

因此它至少承担了三件事：

  1. 缓存加速：减少重复读盘；
  2. 一致性约束：保证同一个磁盘块在缓存里不要出现多份副本；
  3. 并发控制：保证多个内核执行流同时访问缓存时不会把状态弄乱。

问：struct buf 为什么同时保留 prev 和 next？

答： prev 和 next 同时存在是因为原版 xv6 使用的 LRU 缓存管理很依赖双向链表：

  • 命中查找时会遍历链表；
  • 释放时要把结点移到链表前面；
  • 选择可替换块时常常要从另一端开始找。

而双向链表可以将插入操作降低为 O(1) 复杂度，减少时间开销。

问：为什么哈希桶思路可以减少锁争用？为什么不能简单照搬“每 CPU 一份缓存”的做法？

答：对 kalloc 来说，把空闲页按 CPU 分开，问题不大，因为“页”本来就是会被分配给不同执行流独立使用的资源。

但 bcache 不一样：

  • 它缓存的是 共享的磁盘数据；
  • 同一个磁盘块，很多进程都可能来访问；
  • 如果你简单做成“每 CPU 一份缓存”，就可能出现：
    • CPU0 缓存了块 X
    • CPU1 也缓存了块 X
    • 两边内容不一致 这样就会直接破坏“同一个磁盘块在内存里只有一份副本”这个关键约束。

所以 bcache 的优化重点不是“把数据完全分家”，而是：

  • 在 不破坏唯一副本语义 的前提下；
  • 尽量把锁竞争分散开。

环境准备

切换到新的分支，并且清空先前留下的 fs.img

git checkout lock
make clean
make

多核环境启动

make qemu

单核环境启动，用于排查并发问题

make qemu CPUS=1

原题测试

kalloctest
usertests sbrkmuch
bcachetest
usertests

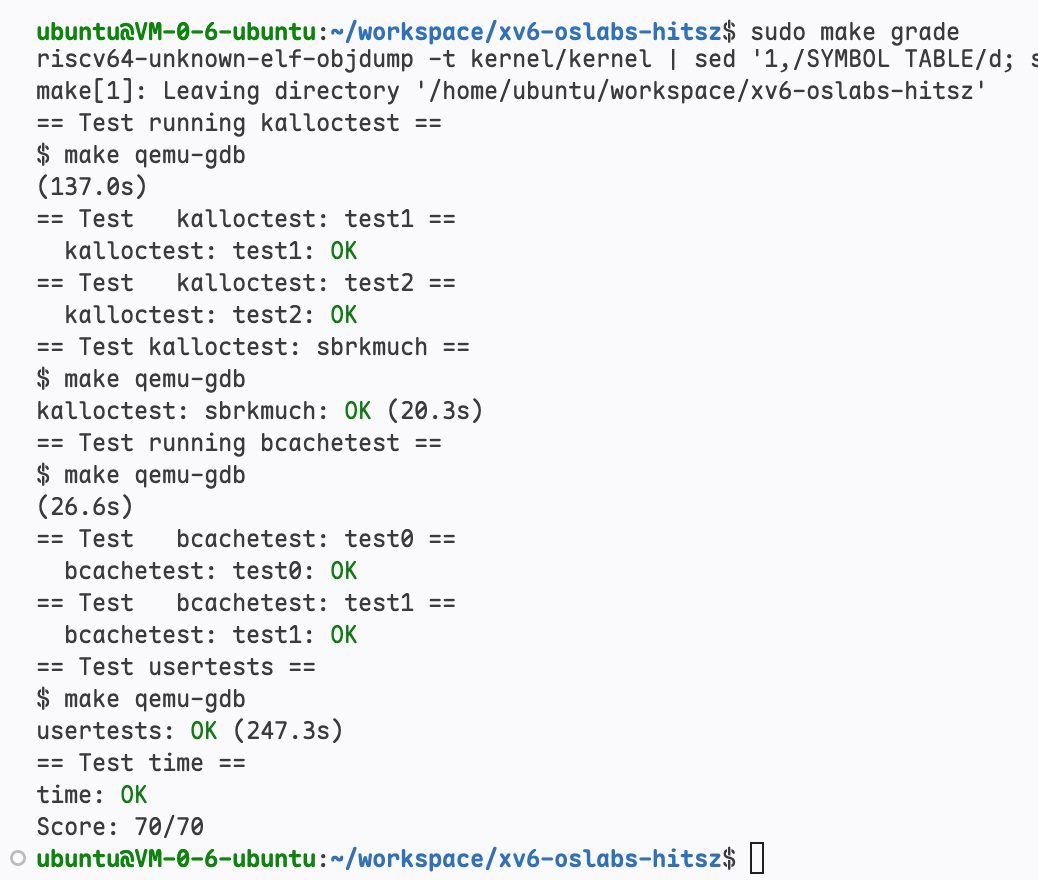

由于测试打印的信息太多了，所以统一放到了附录中

原题测试

任务一：优化内存分配器

指导书要求

任务要求降低 kalloc, kfree 时发生的锁竞争，常见做法是把原来的单个 freelist 改成“每 CPU 一条 freelist”。例如：

struct run {
  struct run *next;
};

struct kmem {
  struct spinlock lock;
  struct run *freelist;
};

struct kmem kmems[NCPU];

你不必和这个示例完全一样，但最终设计至少要满足：

  • 空闲页不能丢；
  • 空闲页不能重复出现在多条链表中；
  • 新增锁名要以 kmem 开头。

推荐实现顺序

  1. 先把 kinit()、freerange()、kfree()、kalloc() 之间的调用关系看清楚。
  2. 再决定你的新数据结构怎么组织：是每 CPU 一把锁 + 一条链表，还是其他等价设计。
  3. 先把“当前 CPU 上申请 / 释放”这条基本路径改通。
  4. 再补“本地没页时从其他 CPU 借页”的逻辑。
  5. 最后跑 kalloctest、usertests sbrkmuch、usertests 检查正确性和性能。

原题设计

原来的 kalloc.c 中的内容并不多，大致如下

extern char end[]; // first address after kernel.
                   // defined by kernel.ld.

struct run {
  struct run *next;
};

struct {
  struct spinlock lock;
  struct run *freelist;
} kmem;

void
kinit()
{
  initlock(&kmem.lock, "kmem");
  freerange(end, (void*)PHYSTOP);   // 释放 end 到 PHYSTOP 的物理页
}

void
freerange(void *pa_start, void *pa_end)
{
  // 按范围释放物理页
  char *p;
  p = (char*)PGROUNDUP((uint64)pa_start);
  for(; p + PGSIZE <= (char*)pa_end; p += PGSIZE)
    kfree(p);
}

void
kfree(void *pa)
{
  // 将物理页填满垃圾数据，然后添加到空闲页链表中
  struct run *r;
  if(((uint64)pa % PGSIZE) != 0 || (char*)pa < end || (uint64)pa >= PHYSTOP)
    panic("kfree");
  memset(pa, 1, PGSIZE);
  r = (struct run*)pa;

  acquire(&kmem.lock);
  r->next = kmem.freelist;
  kmem.freelist = r;
  release(&kmem.lock);
}

void *
kalloc(void)
{
  // 从空闲页链表中找到空闲页，填充垃圾数据然后返回
  struct run *r;
  acquire(&kmem.lock);
  r = kmem.freelist;
  if(r)
    kmem.freelist = r->next;
  release(&kmem.lock);

  if(r)
    memset((char*)r, 5, PGSIZE); // fill with junk
  return (void*)r;
}

本文的修改思路

在和 ChatGPT 商讨一段时间后，最终打算实现的思路如下

  1. 采用每 CPU 一个空闲页链表，每个链表都有自己的锁
  2. 释放时，获得空闲页链表自己的锁，释放页到自己的链表中
  3. 分配时，先检查当前空闲页链表是否有空闲页，如果没有，执行偷页操作，再尝试进行分配
  4. 采用偷页的方式，当空闲页链表空了，遍历其他CPU的链表信息，进行偷页
    • 每个空闲页链表对象都会存储空闲页数量信息
    • 偷页时，不带锁检查一遍全部空闲页链表，选出 victim
    • 对受害者进行偷页时，获得锁，进行偷页，按照 victim 的空闲页数量进行比例偷取，本文偷 victim 中的一半的空闲页
    • 偷页完成后，当前空闲页链表的页数量会变多
    • 返回页链表头结点，或者失败返回空指针
  5. 初始化时，让 CPU0 获得全部页，其他CPU的空闲页链表都是空的，只有需要时才进行偷取

修改代码

初始化

首先是初始化的代码，不需要太多更改，因为释放的页全部都到了 CPU0 这里

void
kinit()
{
  // 给锁起名字方便调试
  for(int i=0;i<NCPU;i++){
    kmem_names[i][0] = 'k';
    kmem_names[i][1] = 'm';
    kmem_names[i][2] = 'e';
    kmem_names[i][3] = 'm';
    kmem_names[i][4] = '0' + i;
    kmem_names[i][5] = '\0';
    initlock(&kmems[i].lock, kmem_names[i]);
    kmems[i].free_pages = 0;
  }
  freerange(end, (void*)PHYSTOP);
}

void
freerange(void *pa_start, void *pa_end)
{
  char *p;
  p = (char*)PGROUNDUP((uint64)pa_start);
  for(; p + PGSIZE <= (char*)pa_end; p += PGSIZE)
    kfree(p);   // all to cpu0 first

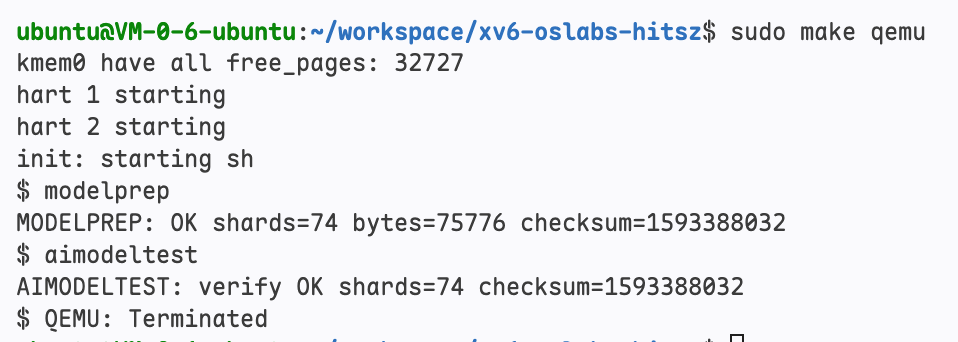

  printf("kmem0 have all free_pages: %d\n", kmems[0].free_pages);   // 调试打印用
}

偷页

获取CPU ID时，程序不能发生中断，否则可能获取到错误的CPUID，为了保持当前 CPU 上下文稳定，需要使用 push_off(), pop_off() 暂时关闭中断

push_off();
int cid = cpuid();
...
pop_off();

如果不这么做，可能会出现 CPU2 拿着 CPU0 的空闲页链表进行操作的情况，所以在此期间本文使用了 push_off,pop_off 覆盖了 cid 的使用范围。

偷页函数如下

// Try stealing pages from other CPUS
void *
ksteal(void)
{
  struct run *head;
  struct run *tail = 0;
  push_off();
  int cid = cpuid();
  int victim = -1;
  int max_free_pages = 0;

  for(int i=0;i<NCPU;i++){  // scan free_pages
    if (i==cid) continue;
    if (kmems[i].free_pages>max_free_pages){
      victim = i;
      max_free_pages = kmems[i].free_pages;
    }
  }

  if(victim!=-1){
    acquire(&(kmems[victim].lock));
    int free_pages = kmems[victim].free_pages;
    if (free_pages){
      // steal half of the free pages
      int steal_num = (free_pages + 1)/2;
      head = kmems[victim].freelist;
      for (int i=0; i<steal_num;++i){
        tail = kmems[victim].freelist;
        kmems[victim].freelist = kmems[victim].freelist->next;
      }
      kmems[victim].free_pages -= steal_num;
      release(&(kmems[victim].lock));
      // 将偷来的页添加到页链表中
      acquire(&(kmems[cid].lock));
      kmems[cid].free_pages += steal_num;
      tail->next = kmems[cid].freelist;
      kmems[cid].freelist = head;
      release(&(kmems[cid].lock));

      pop_off();
      return (void*)head;
    }
    release(&(kmems[victim].lock));
  }
  pop_off();
  return 0; // failed;
}

kalloc(), kfree() 修改

kalloc() 和 kfree() 同样需要获得当前CPUID，并且获得对应的锁

void
kfree(void *pa)
{
  struct run *r;
  push_off();
  int cid = cpuid();

  if(((uint64)pa % PGSIZE) != 0 || (char*)pa < end || (uint64)pa >= PHYSTOP)
    panic("kfree");

  // Fill with junk to catch dangling refs.
  memset(pa, 1, PGSIZE);

  r = (struct run*)pa;

  acquire(&(kmems[cid].lock));
  r->next = kmems[cid].freelist;
  kmems[cid].freelist = r;
  kmems[cid].free_pages++;
  release(&kmems[cid].lock);
  pop_off();
}

void *
kalloc(void)
{
  struct run *r;
  push_off();
  int cid = cpuid();
  acquire(&(kmems[cid].lock));
  r = kmems[cid].freelist;
  if(r){
    kmems[cid].freelist = r->next;
    kmems[cid].free_pages--;
    release(&kmems[cid].lock);
  } else {
    release(&kmems[cid].lock);
    ksteal();
    acquire(&kmems[cid].lock);
    r = kmems[cid].freelist;
    if(r){
      kmems[cid].freelist = r->next;
      kmems[cid].free_pages--;
    }
    release(&kmems[cid].lock);
  }
  pop_off();
  if(r)
    memset((char*)r, 5, PGSIZE); // fill with junk
  return (void*)r;
}

测试结果

不出意外的话，测试结果中应该可以看到锁竞争次数会下降为0

...
--- lock kmem/bcache stats
lock: kmem0: #fetch-and-add 0 #acquire() 160393
lock: kmem1: #fetch-and-add 0 #acquire() 136444
lock: kmem2: #fetch-and-add 0 #acquire() 136185
...

而原本的代码中锁竞争次数很高

--- lock kmem/bcache stats
lock: kmem: #fetch-and-add 3896751 #acquire() 433016

更多测试数据相见附录

修改后测试

任务二：优化 buffer cache

指导书要求

减少 bcache.lock 的集中竞争，同时保持 bio.c 的缓存语义不变。

你需要继续保证：

  1. 同一个磁盘块在缓存中最多只有一份副本；
  2. refcnt、命中查找、替换和释放逻辑仍然正确；
  3. 新增锁名以 bcache 开头。
  4. 一种常见做法是使用多个哈希桶。例如：
#define NBUCKETS 13

struct {
  struct spinlock lock[NBUCKETS];
  struct buf buf[NBUF];
  struct buf hashbucket[NBUCKETS];
} bcache;

你也不必照抄这个结构，但“多桶分散竞争”通常是比较自然的方向。

推荐实现顺序

  1. 先把 binit()、bget()、bread()、brelse()、bpin()、bunpin() 的行为理清楚。
  2. 再决定你的桶划分方式，例如按 blockno 哈希到固定数量的桶。
  3. 先实现“命中时如何找到块并安全增加引用计数”。
  4. 再实现“未命中时如何找一个空闲 buf 并把它放到新桶里”。
  5. 最后检查 bcachetest 和 usertests。

bio.c 内容分析

bio.c 的主要函数如下

  • binit(): 初始化操作，包括初始化锁和插入链表
  • bget(): 给定 blockno 返回 buf 结点，并且增加 refcnt。未 cached 的结点会用 LRU 释放一个。返回之前会持有结点的睡眠锁。
  • bread(): 调用 bget() 获取 buf 结点，如果是新结点会读取磁盘内容再返回
  • bwrite(): 检查锁是否持有，然后写回磁盘
  • brelse(): 并且释放结点睡眠锁，获取全局锁并且减少 buf 结点的 refcnt，如果 refcnt 减至0，将其移动到 bache.head->next 的位置
  • bpin(): 获取 bache 锁，增加结点的 refcnt，释放锁
  • bunpin(): 获取 bache 锁，减少结点的 refcnt，释放锁

实现思路

本文使用哈希桶进行实现，相关数据结构和哈希函数如下

struct bucket {
  struct spinlock lock;
  struct buf *head;
} bucket;

struct {
  struct buf buf[NBUF];
  struct bucket bucket[NBUCKET];
} bcache;

int
bhash(uint blockno)
{
  return blockno % NBUCKET;
}
  • 初始化时，按照数组下标将 buf 结点插入到各个桶之中
  • 需要获取 buffer cache 时，根据三种情况进行处理
    1. cached: 直接在桶里面找到对应的 buf
    2. uncached: 在桶里面尝试回收 refcnt==0 的结点并返回
    3. steal: 当桶里面没有可回收的结点，尝试从其他桶里面进行偷取
      • 遍历每个桶里面的结点尝试回收
  • 修改锁的获取释放

初始化 bcache

void
binit(void)
{
  struct buf *b;
  for(int i=0; i<NBUCKET; ++i){
    bucket_names[i][0] = 'b';
    bucket_names[i][1] = 'c';
    bucket_names[i][2] = 'a';
    bucket_names[i][3] = 'c';
    bucket_names[i][4] = 'h';
    bucket_names[i][5] = 'e';
    bucket_names[i][6] = i>=10? ('0' + i/10):('0' + i);
    bucket_names[i][7] = i>=10? ('0' + i%10):('\0');
    bucket_names[i][8] = '\0';
    initlock(&(bcache.bucket[i].lock), bucket_names[i]);
    bcache.bucket[i].head = 0;
  }

  // Create linked list of buffers
  for(int i=0; i < NBUF; i++){  // 在 head 和下个结点间插入新结点
    b = &bcache.buf[i];
    initsleeplock(&b->lock, "buffer");
    int bucket_num = bhash(i);
    b->bucket = bucket_num;
    b->next = bcache.bucket[bucket_num].head;
    bcache.bucket[bucket_num].head = b;
  }
}

因为放弃了双向链表，这里没有 prev 。直接使用头插法插入结点，并且初始化每个桶的锁。

为了方便根据结点获取桶位置，这里修改了 struct buf，添加了 bucket 变量记录这个结点在哪个桶中。

struct buf {
  int valid;   // has data been read from disk?
  int disk;    // does disk "own" buf?
  uint dev;
  uint blockno;
  struct sleeplock lock;
  uint refcnt;
  uint bucket;
  struct buf *prev; // LRU cache list
  struct buf *next;
  uchar data[BSIZE];
};

修改 bget()

根据前面的修改思路，这里给出代码如下

static struct buf*
bget(uint dev, uint blockno)
{
  struct buf *b;
  int bucket_num = bhash(blockno);
  acquire(&(bcache.bucket[bucket_num].lock));

  // Is the block already cached?
  for(b = bcache.bucket[bucket_num].head; b; b = b->next){
    if(b->dev == dev && b->blockno == blockno){
      b->refcnt++;
      release(&(bcache.bucket[bucket_num].lock));
      acquiresleep(&b->lock);
      return b;
    }
  }

  // Not cached.
  // Recycle in the bucket first
  for(b = bcache.bucket[bucket_num].head; b; b = b->next){
    if(b->refcnt == 0) {
      b->dev = dev;
      b->blockno = blockno;
      b->valid = 0;
      b->refcnt = 1;
      release(&(bcache.bucket[bucket_num].lock));
      acquiresleep(&b->lock);
      return b;
    }
  }

  // steal buf from other buckets
  release(&(bcache.bucket[bucket_num].lock));
  struct buf *prevb;
  for(int offset=0; offset<NBUCKET;offset++){
    prevb = 0;
    int i = (cpuid()+offset)%NBUCKET; // optimization
    if (i==bucket_num) continue;
    acquire(&(bcache.bucket[i].lock));
    for(b = bcache.bucket[i].head; b; prevb = b, b = b->next){
      if(b->refcnt == 0) {

        if(prevb) // b is not head
          prevb->next = b->next;
        else
          bcache.bucket[i].head = b->next;
        b->dev = dev;
        b->blockno = blockno;
        b->valid = 0;
        b->refcnt = 1;
        b->bucket = bucket_num;
        release(&(bcache.bucket[i].lock));

        acquire(&(bcache.bucket[bucket_num].lock));
        b->next = bcache.bucket[bucket_num].head;
        bcache.bucket[bucket_num].head = b;
        release(&(bcache.bucket[bucket_num].lock));

        acquiresleep(&b->lock);
        return b;
      }
    }
    release(&(bcache.bucket[i].lock));
  }
  panic("bget: no buffers");
}

其他处理

前面添加 bucket 成员变量就是为了方便这里进行锁的持有和释放

void
brelse(struct buf *b)
{
  if(!holdingsleep(&b->lock))
    panic("brelse");
  int bucket_num = b->bucket;
  releasesleep(&b->lock);

  acquire(&(bcache.bucket[bucket_num].lock));
  b->refcnt--;
  release(&(bcache.bucket[bucket_num].lock));
}

void
bpin(struct buf *b) {
  int bucket_num = b->bucket;
  acquire(&(bcache.bucket[bucket_num].lock));
  b->refcnt++;
  release(&(bcache.bucket[bucket_num].lock));
}

void
bunpin(struct buf *b) {
  int bucket_num = b->bucket;
  acquire(&(bcache.bucket[bucket_num].lock));
  b->refcnt--;
  release(&(bcache.bucket[bucket_num].lock));
}

测试结果

不出意外的话，测试结果中应该可以看到锁竞争次数会下降为0

...
--- lock kmem/bcache stats
...
lock: bcache0: #fetch-and-add 0 #acquire() 2
lock: bcache1: #fetch-and-add 0 #acquire() 4
lock: bcache2: #fetch-and-add 0 #acquire() 12
lock: bcache3: #fetch-and-add 0 #acquire() 8
lock: bcache4: #fetch-and-add 0 #acquire() 8
lock: bcache5: #fetch-and-add 0 #acquire() 8
lock: bcache6: #fetch-and-add 0 #acquire() 82
lock: bcache7: #fetch-and-add 0 #acquire() 82
lock: bcache8: #fetch-and-add 0 #acquire() 1082
lock: bcache9: #fetch-and-add 0 #acquire() 4
lock: bcache10: #fetch-and-add 0 #acquire() 4
lock: bcache11: #fetch-and-add 0 #acquire() 12
lock: bcache12: #fetch-and-add 0 #acquire() 4
...

而原本的代码中锁竞争次数很高

--- lock kmem/bcache stats
...
lock: bcache: #fetch-and-add 1296098 #acquire() 66476

更多测试数据相见附录

修改后测试

修改完成后就可以执行 make grade 了

== Test running kalloctest ==
$ make qemu-gdb
(137.0s)
== Test   kalloctest: test1 ==
  kalloctest: test1: OK
== Test   kalloctest: test2 ==
  kalloctest: test2: OK
== Test kalloctest: sbrkmuch ==
$ make qemu-gdb
kalloctest: sbrkmuch: OK (20.3s)
== Test running bcachetest ==
$ make qemu-gdb
(26.6s)
== Test   bcachetest: test0 ==
  bcachetest: test0: OK
== Test   bcachetest: test1 ==
  bcachetest: test1: OK
== Test usertests ==
$ make qemu-gdb
usertests: OK (247.3s)
== Test time ==
time: OK
Score: 70/70

AI 推理服务附加题

AI 附加题的指导书比较令人困惑。这里尝试进行梳理

实验背景

指导书花了很长的篇幅讲解 AI 推理的流程，很容易让人头晕眼花。这里打算从实验任务出发来理解代码。

这个实验最终要完成的是实现 cache 和 prefetch，涉及到的通路如下

struct ai_path ai_student_path = {
  .mode = AI_MODE_STUDENT,
  .name = "student",
  .implemented = AI_MODEL_TASK_IMPLEMENTED && AI_KV_TASK_IMPLEMENTED,
  .prefetch = 0,
  .begin = student_begin,
  .load = student_load,
  .begin_kv_write = student_begin_kv_write,
  .store_kv = student_store_kv,
  .end_kv_write = student_end_kv_write,
  .begin_kv_read = student_begin_kv_read,
  .prefetch_next = student_prefetch_next,
  .prefetch_wait = student_prefetch_wait,
  .restore_kv = student_restore_kv,
  .end = student_end,
};

struct ai_path ai_prefetch_path = {
  .mode = AI_MODE_PREFETCH,
  .name = "prefetch",
  .implemented = AI_MODEL_TASK_IMPLEMENTED && AI_KV_TASK_IMPLEMENTED &&
                 AI_PREFETCH_TASK_IMPLEMENTED,
  .prefetch = 1,

  .begin = prefetch_begin,
  .load = student_load,
  .begin_kv_write = student_begin_kv_write,
  .store_kv = student_store_kv,
  .end_kv_write = student_end_kv_write,
  .begin_kv_read = student_begin_kv_read,
  .prefetch_next = student_prefetch_next,
  .prefetch_wait = student_prefetch_wait,
  .restore_kv = student_restore_kv,
  .end = student_end,
};

只要把这里面的函数全部实现，那么所有的任务就完成了。

任务一：模型与 embedding 加载

要求

本任务需要修改 user/ai_student_model.c 和 user/ai_student.c，然后通过下面的测试

init: starting sh
$ modelprep
MODELPREP: OK shards=74 bytes=75776 checksum=1593388032
$ aimodeltest
AIMODELTEST: verify OK shards=74 checksum=1593388032
$

关于 user/ai_student_model.c，需要修改的只有标志

// 完成对应任务并通过单项测试后，将标志改为 1。
#define AI_MODEL_TASK_IMPLEMENTED 0
#define AI_KV_TASK_IMPLEMENTED 0
#define AI_PREFETCH_TASK_IMPLEMENTED 0

关于 user/ai_student.c ，需要实现下面的函数

int
ai_student_model_begin(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题一)：初始化当前 worker 的模型加载状态。
  // 可以在这里申请 worker 私有缓存；不得修改全局模型文件或扩大 NBUF。
  // 单项验证：先运行 modelprep，再运行 aimodeltest。
  (void)session;
  return -1;
}

int
ai_student_model_load(struct ai_session *session, uint family, uint shard,
                      char *block, struct ai_io *io)
{
  // TODO(LAB3-AI，附加题一)：加载一个模型块或 embedding shard。
  // 首次数据必须来自 xv6 文件系统，成功时 block 中必须恰好有
  // AI_SHARD_BYTES 字节；只有真实读取成功后才能更新 io 字节数。
  // 建议先读懂 ai_baseline.c 的经典 open-read-close 数据流，再考虑缓存。
  (void)session;
  (void)family;
  (void)shard;
  (void)block;
  (void)io;
  return -1;
}

void
ai_student_model_end(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题一)：释放缓存并关闭尚未关闭的模型文件描述符。
  // 失败路径和正常路径都必须能够安全调用本函数，资源只能释放一次。
  (void)session;
}

思路

首先查看 ai_student_path，可以画出这样一个调用表格

ai_student_path函数涉及函数
.beginstudent_beginstudent_begin_common, ai_student_model_begin, ai_student_kv_begin, ai_student_model_end
.loadstudent_loadai_student_model_load
.begin_kv_writestudent_begin_kv_writeai_student_kv_begin_write
.store_kvstudent_store_kvai_student_kv_store
.end_kv_writestudent_end_kv_writeai_student_kv_end_write
.begin_kv_readstudent_begin_kv_readai_student_kv_begin_read, ai_student_prefetch_begin
.prefetch_nextstudent_prefetch_nextai_student_prefetch_next
.prefetch_waitstudent_prefetch_waitai_student_prefetch_wait
.restore_kvstudent_restore_kvai_student_prefetch_restore, ai_student_kv_restore
.endstudent_endai_student_prefetch_end, ai_student_kv_end, ai_student_model_end

我们要实现的 ai_student_model_begin, ai_student_model_load, ai_student_model_end ，可以在 baseline 里面找对应的函数

struct ai_path ai_baseline_path = {
  .mode = AI_MODE_BASELINE,
  .name = "baseline",
  .implemented = 1,
  .prefetch = 0,
  .begin = baseline_begin,                    // <---
  .load = baseline_load,                      // <---
  .begin_kv_write = baseline_begin_kv_write,
  .store_kv = baseline_store_kv,
  .end_kv_write = baseline_end_kv_write,
  .begin_kv_read = baseline_begin_kv_read,
  .prefetch_next = baseline_prefetch_next,
  .prefetch_wait = baseline_prefetch_wait,
  .restore_kv = baseline_restore_kv,
  .end = baseline_end,                        // <---
};

无论如何，先复制一份无优化版本的总是可以运行的，然后再进行修改，添加缓存。

ai_student_model_load()

之所以先看这个是因为 load 的实现决定了 session 可能需要添加什么状态，从而影响另外两个函数

先看 baseline 这部分要做什么

static int
baseline_load(struct ai_session *session, uint family, uint shard,
              char *block, struct ai_io *io)
{
  char name[AI_SHARD_NAME_LEN];
  int fd;
  int offset;

  (void)session;
  // 先拒绝越界编号，再根据 family 生成 mXX/eXX 文件名。baseline 每次
  // 都执行 open -> read_exact -> close，故意保留重复 I/O 作为优化基线。
  if((family == AI_MODEL_FAMILY && shard >= AI_MODEL_SHARDS) ||
     (family == AI_EMBED_FAMILY && shard >= AI_EMBED_SHARDS))
    return -1;

  ai_shard_name(name, family, shard);
  fd = open(name, O_RDONLY);
  if(fd < 0)
    return -1;
  if(read_exact(fd, block, AI_SHARD_BYTES) < 0) {
    close(fd);
    return -1;
  }
  close(fd);

  // 文件字节正确只是本次读取的内容校验；只有全部通过后，才把真实文件
  // 读取量提交到对应统计字段。用户态复制或校验本身不计入文件字节。
  for(offset = 0; offset < AI_SHARD_BYTES; offset++)
    if((uchar)block[offset] != ai_byte(family, shard, offset))
      return -1;

  if(family == AI_MODEL_FAMILY)
    io->model_read_bytes += AI_SHARD_BYTES;
  else
    io->embed_read_bytes += AI_SHARD_BYTES;
  return 0;
}

大致流程如下：

  1. 检查输入合法性
  2. 根据 family, shard 拼接文件名字，并打开
  3. 从文件中读取大小为 AI_SHARD_BYTES 的数据到 block 中
  4. 进行校验， ai_byte 返回 (family * 97 + shard * 31 + offset * 17 + 11) & 0xff
  5. 更新 *_read_bytes

不管怎么说，给它添加缓存让它不用反复读取即可。要读取的东西是以 AI_SHARD_BYTES 为单位的，那么给所有的可能读取的 SHARDS 都预留空间，然后按照 family, shard 添加有效位即可。这块缓存需要能够被找到并且属于 session 私有，所以干脆放在 session 里面。

struct ai_session {
  int worker;
  int requests;
  int state[8]; // 后面的代码可以看到 state[0] 代表 prefetch
  void *memory;
};

大部分内容都可以保留，修改后代码如下

// 直接添加足够大的缓存，足以覆盖全部内容，除了冷启动以外，缓存必定命中
struct model_cache {
  char model[AI_MODEL_SHARDS][AI_SHARD_BYTES]; // 37 × 1024 = 37888
  char embed[AI_EMBED_SHARDS][AI_SHARD_BYTES]; // 37 × 1024 = 37888
  char model_loaded[AI_MODEL_SHARDS];          // 37 个标志
  char embed_loaded[AI_EMBED_SHARDS];          // 37 个标志
};


int ai_student_model_begin(struct ai_session *session)
{
  // 用 sbrk 给程序分一块内存用于存放 cache
  struct model_cache *c =
      (struct model_cache *)sbrk((int)sizeof(struct model_cache));
  if (c == (void *)-1) // ★ sbrk 失败返回 (void*)-1
    return -1;
  memset(c, 0, sizeof(*c)); // 清零，两个 loaded 数组都变 0
  session->memory = c;      // 记住这块内存
  return 0;
}

int ai_student_model_load(struct ai_session *session, uint family, uint shard,
                          char *block, struct ai_io *io)
{
  char name[AI_SHARD_NAME_LEN];
  int fd;
  int offset;
  struct model_cache *cache = ((struct model_cache *)session->memory);
  // 先拒绝越界编号
  if ((family == AI_MODEL_FAMILY && shard >= AI_MODEL_SHARDS) ||
      (family == AI_EMBED_FAMILY && shard >= AI_EMBED_SHARDS))
    return -1;
  char *target_place = 0;

  // 检查标志位查看是否命中缓存
  int hit = 0;
  if (family == AI_MODEL_FAMILY) {
    hit = cache->model_loaded[shard];
    target_place = &cache->model[shard][0];
  } else {
    hit = cache->embed_loaded[shard];
    target_place = &cache->embed[shard][0];
  }

  if (hit) {
    // 搬运后直接返回
    memmove(block, target_place, AI_SHARD_BYTES);
    return 0;
  }
  // 未命中缓存！
  ai_shard_name(name, family, shard);
  // 直接读取文件
  fd = open(name, O_RDONLY);
  if (fd < 0)
    return -1;
  if (read_exact(fd, target_place, AI_SHARD_BYTES) < 0) {
    close(fd);
    return -1;
  }
  close(fd);

  // 校验
  for (offset = 0; offset < AI_SHARD_BYTES; offset++)
    if ((uchar)target_place[offset] != ai_byte(family, shard, offset))
      return -1;

  // 搬运
  memmove(block, target_place, AI_SHARD_BYTES);
  if (family == AI_MODEL_FAMILY) {
    io->model_read_bytes += AI_SHARD_BYTES;
    cache->model_loaded[shard] = 1;
  } else {
    io->embed_read_bytes += AI_SHARD_BYTES;
    cache->embed_loaded[shard] = 1;
  }
  return 0;
}

ai_student_model_begin()

static int
baseline_begin(struct ai_session *session, int worker, int requests)
{
  // session 只属于当前 worker。baseline 不需要额外缓存状态，因此只
  // 保存 worker 编号和请求数，后续每次调用独立打开并关闭文件。
  memset(session, 0, sizeof(*session));
  session->worker = worker;
  session->requests = requests;
  return 0;
}

static int
student_begin_common(struct ai_session *session, int worker, int requests,
                     int prefetch)
{
  memset(session, 0, sizeof(*session));
  session->worker = worker;
  session->requests = requests;
  session->state[0] = prefetch;

  if(ai_student_model_begin(session) < 0)
    return -1;
  if(ai_student_kv_begin(session) < 0) {
    ai_student_model_end(session);
    return -1;
  }
  return 0;
}

static int
student_begin(struct ai_session *session, int worker, int requests)
{
  return student_begin_common(session, worker, requests, 0);
}

如果不进行优化的话，可以看到外面这层函数已经把 baseline 做过的事情做了一遍了，所以保持上一部分的 begin() 代码即可。

ai_student_model_end()

static void
baseline_end(struct ai_session *session)
{
  char name[AI_KV_NAME_LEN];
  int request;

  // baseline 为每个请求创建了文件，所以结束时按同一 worker 的请求范围
  // 删除临时持久化状态，避免下一轮实验误读旧文件。
  for(request = 0; request < session->requests; request++) {
    ai_baseline_kv_name(name, session->worker, request);
    unlink(name);
  }
  memset(session, 0, sizeof(*session));
}

static void
student_end(struct ai_session *session)
{
  if(session->state[0])
    ai_student_prefetch_end(session);
  ai_student_kv_end(session);
  ai_student_model_end(session);
  memset(session, 0, sizeof(*session));
}

对比可以看到，student_end 除了 memset 清空 session 以外什么也没帮我们干，所以我们需要自己释放掉我们申请的缓存，至于删掉文件，即使没有处理其实也能通过测试，因为本人完成之后写到这里时才发现这件事情，不过目前为止没有涉及新建文件的操作，所以暂时不理会。

void ai_student_model_end(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题一)：释放缓存并关闭尚未关闭的模型文件描述符。
  // 失败路径和正常路径都必须能够安全调用本函数，资源只能释放一次。
  if (session->memory != 0) {               // ★ 没申请过就不释放
    sbrk(-(int)sizeof(struct model_cache)); // 精确归还同样大小
    session->memory = 0;                    // 防止重复释放
  }
}

不管怎么说，反正能跑通测试了

Task1

任务二：KV 持久化与恢复

要求

本任务需要修改 user/ai_student_model.c 并实现 user/ai_student_kv.c 里面的函数并通过下面的测试

init: starting sh
$ modelprep
MODELPREP: OK shards=74 bytes=75776 checksum=1593388032
$ aikvtest
AIKVTEST: verify OK requests=4 bytes=8192
$ aiinfer student -w 3 -r 24
AIINFER: verify OK mode=student
AIINFER_METRICS mode=student workers=3 requests=24 elapsed_ticks=38 throughput_milli=18947 p95_ticks=12 kmem_spins=0 bcache_spins=577 total_spins=577 model_read_bytes=113664 embed_read_bytes=113664 kv_write_bytes=147456 kv_read_bytes=147456 checksum=1717503730
$ aiinfer compare -w 3 -r 24
AIINFER_COMPARE: verify OK checksum=1717503730
$

关于 ai_student_model.c 还是修改标志位即可

int
ai_student_kv_begin(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题二)：初始化当前 worker 的 KV 持久化状态。
  // 可采用每请求文件，也可采用每 worker 顺序流，但不得保留内存副本绕过恢复。
}

int
ai_student_kv_begin_write(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题二)：开始 KV 写入阶段并准备所需文件。
}

int
ai_student_kv_store(struct ai_session *session, int request,
                    struct kv_entry *kv, struct ai_io *io)
{
  // TODO(LAB3-AI，附加题二)：把当前请求的完整 KV cache 写入 xv6 文件系统。
  // 必须循环处理短写；只有 AI_KV_FILE_BYTES 字节全部成功后才更新统计。
  // aiinfer 随后会立即释放原页面，因此不能依赖 kv 指针中的残留数据。
}

int
ai_student_kv_end_write(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题二)：结束写阶段，确保文件状态完整并关闭写描述符。
}

int
ai_student_kv_begin_read(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题二)：重新打开持久化文件，从文件起点开始恢复。
}

int
ai_student_kv_restore(struct ai_session *session, int request,
                      struct kv_entry *kv, struct ai_io *io)
{
  // TODO(LAB3-AI，附加题二)：精确恢复当前请求的完整 KV cache。
  // 目标页已被覆盖，必须循环处理短读；全部成功后再更新读取字节数。
  // 单项验证：先运行 modelprep，再运行 aikvtest。
}

void
ai_student_kv_end(struct ai_session *session)
{
  // TODO(LAB3-AI，附加题二)：关闭 KV 文件并删除当前 worker 的临时持久化文件。
}

指导书给了一个状态机来解释这七个接口的作用

七个接口组成一个状态机

阶段主要接口输入或状态成功后的状态
worker 初始化ai_student_kv_beginworker 编号、请求总数文件名、fd 初值、计数器已初始化
开始写ai_student_kv_begin_write已初始化 session写入资源已准备，下一条为 request 0
写一条ai_student_kv_storerequest、KV 页、I/O 统计当前记录完整持久化
结束写ai_student_kv_end_write全部请求已写写 fd 已关闭，文件边界稳定
开始读ai_student_kv_begin_read完整持久化文件从第一条记录开始恢复
读一条ai_student_kv_restorerequest、新 KV 页、I/O 统计当前记录完整填入新页
清理ai_student_kv_end任意可清理状态fd 关闭、临时文件删除、状态失效

思路和实现

还是继续查看 baseline 怎么写的，然后看看有什么需要优化。

ai_student_path函数涉及函数
.beginstudent_beginstudent_begin_common, ai_student_model_begin, ai_student_kv_begin, ai_student_model_end
.loadstudent_loadai_student_model_load
.begin_kv_writestudent_begin_kv_writeai_student_kv_begin_write
.store_kvstudent_store_kvai_student_kv_store
.end_kv_writestudent_end_kv_writeai_student_kv_end_write
.begin_kv_readstudent_begin_kv_readai_student_kv_begin_read, ai_student_prefetch_begin
.prefetch_nextstudent_prefetch_nextai_student_prefetch_next
.prefetch_waitstudent_prefetch_waitai_student_prefetch_wait
.restore_kvstudent_restore_kvai_student_prefetch_restore, ai_student_kv_restore
.endstudent_endai_student_prefetch_end, ai_student_kv_end, ai_student_model_end

我们要实现的 ai_student_kv_begin, ai_student_kv_begin_write, ai_student_kv_end_write,... ai_student_kv_end ，可以在 baseline 里面找对应的函数

.begin 和 .end 已经看过了，这里不看，并且把没有内容的函数也去掉，就只剩下下面的函数能够参考

static int
baseline_store_kv(struct ai_session *session, int request,
                  struct kv_entry *kv, struct ai_io *io)
{
  char name[AI_KV_NAME_LEN];
  int fd;

  // worker 和 request 都编码进文件名，保证多个 worker 的同号请求不会
  // 互相覆盖。删除旧文件后重新创建，也能让重复运行从干净状态开始。
  ai_baseline_kv_name(name, session->worker, request);
  unlink(name);
  fd = open(name, O_CREATE | O_WRONLY);
  if(fd < 0)
    return -1;
  if(write_exact(fd, kv, AI_KV_FILE_BYTES) < 0) {
    // 部分 KV 不能被恢复为合法记录，因此失败路径必须关闭 fd 并删除文件。
    close(fd);
    unlink(name);
    return -1;
  }
  close(fd);
  // write_exact 成功后才提交固定大小的 I/O 统计，统计值不会被短写污染。
  io->kv_write_bytes += AI_KV_FILE_BYTES;
  return 0;
}
static int
baseline_restore_kv(struct ai_session *session, int request,
                    struct kv_entry *kv, struct ai_io *io)
{
  char name[AI_KV_NAME_LEN];
  int fd;

  // workload 已经释放并重新申请了 KV 页面，这里从持久化文件恢复完整
  // 记录，而不是继续使用 prefill 阶段的旧指针或重新计算 K/V。
  ai_baseline_kv_name(name, session->worker, request);
  fd = open(name, O_RDONLY);
  if(fd < 0)
    return -1;
  if(read_exact(fd, kv, AI_KV_FILE_BYTES) < 0) {
    close(fd);
    return -1;
  }
  close(fd);
  // 只有完整读取成功才增加 kv_read_bytes；调用者随后还会检查 KV checksum。
  io->kv_read_bytes += AI_KV_FILE_BYTES;
  return 0;
}

baseline 的流程是 store 的时候删掉文件重新新建写入 kv，restore 的时候重新打开文件读取 kv，所以不需要跨函数维护 fd，而任务要求的工作流如下

begin
  -> begin_write
  -> store(0), store(1), ... store(requests-1)
  -> end_write
  -> begin_read
  -> restore(0), restore(1), ... restore(requests-1)
  -> end

并且指导书提到 student 可以保留这种组织，也可以减少文件数量。一个常见方向是每 worker 使用一个顺序文件：写阶段按 request 0、1、2 追加，关闭后重新打开，再按相同顺序读回。

所以设计成如下的思路

  1. 每个 worker 拥有一个文件，fd 存放在 state[1] 中
  2. begin 时，初始化 state[1]=-1 表示文件未打开
  3. begin_write 时，删掉旧文件，新创建文件
  4. store 时，向文件写入内容，更新统计
  5. end_write 时，关闭文件，state[1]=-1
  6. begin_read 时，重新打开文件，state[1]=fd
  7. restore 时，正常通过 state[1] 进行读取，更新统计
  8. end 时，关闭文件描述符并删掉文件

代码如下

int
ai_student_kv_begin(struct ai_session *session)
{
  session->state[1] = -1;      // 标记"没打开文件"
  return 0;
}

int
ai_student_kv_begin_write(struct ai_session *session)
{
  char name[AI_KV_NAME_LEN];
  ai_student_kv_name(name, session->worker);   // 拼出文件名 kvs0/kvs1/kvs2
  unlink(name);                                // 删掉可能残留的旧文件
  int fd = open(name, O_CREATE | O_WRONLY);    // 新建，从头写
  if (fd < 0)
    return -1;
  session->state[1] = fd;
  return 0;
}

int
ai_student_kv_store(struct ai_session *session, int request,
                    struct kv_entry *kv, struct ai_io *io)
{
  (void)request;    // 顺序流用不到 request
  if (write_exact(session->state[1], kv, AI_KV_FILE_BYTES) < 0)
    return -1;
  io->kv_write_bytes += AI_KV_FILE_BYTES;   // 写满 2048 才计
  return 0;
}

int
ai_student_kv_end_write(struct ai_session *session)
{
  close(session->state[1]);
  session->state[1] = -1;
  return 0;
}

int
ai_student_kv_begin_read(struct ai_session *session)
{
  char name[AI_KV_NAME_LEN];
  ai_student_kv_name(name, session->worker);
  int fd = open(name, O_RDONLY);
  if (fd < 0)
    return -1;
  session->state[1] = fd;
  return 0;
}

int
ai_student_kv_restore(struct ai_session *session, int request,
                      struct kv_entry *kv, struct ai_io *io)
{
  (void)request;
  if (read_exact(session->state[1], kv, AI_KV_FILE_BYTES) < 0)
    return -1;
  io->kv_read_bytes += AI_KV_FILE_BYTES;    // 读满 2048 才计
  return 0;
}

void
ai_student_kv_end(struct ai_session *session)
{
  char name[AI_KV_NAME_LEN];
  if (session->state[1] >= 0)      // ★ 没打开过就不 close
    close(session->state[1]);
  ai_student_kv_name(name, session->worker);
  unlink(name);
}

因为测试中 request 完全是顺序的，所以这里不需要判断 request 是否合法也能通过测试

main(...){
  ...
  for(request = 0; request < KV_TEST_REQUESTS; request++) {
    kv = (struct kv_entry *)sbrk(PGSIZE);
    if(kv == (void *)-1) {
      ai_student_kv_end(&session);
      fail("无法申请 KV 页面");
    }
    fill_kv(kv, request);
    saved_checksum[request] = kv_checksum(kv);
    if(ai_student_kv_store(&session, request, kv, &io) < 0) {
      sbrk(-PGSIZE);
      ai_student_kv_end(&session);
      fail("KV 写盘失败");
    }
    sbrk(-PGSIZE);
  }
  ...
}

260928更新：经反馈后 aikvtest 已更新，需要加上对 request 的合法性检查，否则会出现类似下面的报错

$ aikvtest
AIKVTEST: 失败：restore 接受了负数 request

任务三：多 worker 等价与相对性能

该任务需要运行测试并比较性能是否有提升，指导书提到建议按以下顺序检查：

modelprep
aimodeltest
aikvtest
aiinfer student -w 3 -r 24
aiinfer compare -w 3 -r 24

除了 aimodeltest 其他都已经测试过了，这里补上

$ aimodeltest
AIMODELTEST: verify OK shards=74 checksum=1593388032
$

然后需要运行

python3 tools/grade_ai.py --runs 3

运行前记得 make clean 避免 inode 不够用，这个测试需要的时间较长，结果放在了附录

附加题测试结果

得到结果之后需要各取 3 次结果的中位数计算

  "baseline_median": {
    "bcache_spins": 74667,
    "checksum": 1717503730,
    "elapsed_ticks": 518,
    "embed_read_bytes": 2359296,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 2359296,
    "p95_ticks": 400,
    "requests": 24,
    "throughput_milli": 1389,
    "total_spins": 74667,
    "workers": 3
  },
...
  "student_median": {
    "bcache_spins": 368,
    "checksum": 1717503730,
    "elapsed_ticks": 40,
    "embed_read_bytes": 113664,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 113664,
    "p95_ticks": 11,
    "requests": 24,
    "throughput_milli": 18000,
    "total_spins": 368,
    "workers": 3
  },

吞吐倍率     = student throughput / baseline throughput = 18000/1389 = 12.9589632829
争用改善倍率 = baseline total_spins / student total_spins = 74667/368 = 202.8994565217
p95 改善倍率 = baseline p95 / student p95 = 400/11 = 36.3636363636

任务四：KV cache-aware prefetch

要求

本任务需要修改 user/ai_student_model.c 并实现 user/ai_student_prefetch.c 里面的函数并通过前面所有测试以及下面的测试

python3 tools/grade_ai.py --runs 3 --bonus

ai_student_model.c 只需要修改标志位即可，而 ai_student_prefetch.c 需要实现下面的函数

int
ai_student_prefetch_begin(struct ai_session *session)
{
  // TODO(LAB3-AI，选做)：建立固定小窗口的 KV 预取状态。
  // 推荐使用轻量辅助进程提前读取下一条记录，让数据进入共享 buffer cache。
  // 不允许扩大 NBUF，也不能跳过附加题二要求的真实恢复。
}

int
ai_student_prefetch_next(struct ai_session *session, int request)
{
  // TODO(LAB3-AI，选做)：非阻塞地请求预取给定 request 的 KV 记录。
}

int
ai_student_prefetch_wait(struct ai_session *session, int request)
{
  // TODO(LAB3-AI，选做)：等待对应预取完成，且不得改变父 worker 的文件偏移。
}

int
ai_student_prefetch_restore(struct ai_session *session, int request,
                            struct kv_entry *kv, struct ai_io *io)
{
  // TODO(LAB3-AI，选做)：把已由辅助进程从磁盘读取的完整记录交给父 worker。
  // 这次恢复仍必须对应一次真实文件读取，并且只在完整交付后累计 KV 字节数。
}

void
ai_student_prefetch_end(struct ai_session *session)
{
  // TODO(LAB3-AI，选做)：关闭管道、等待辅助进程并释放全部预取资源。
}

分析

数据通路如下

struct ai_path ai_prefetch_path = {
  .mode = AI_MODE_PREFETCH,
  .name = "prefetch",
  .implemented = AI_MODEL_TASK_IMPLEMENTED && AI_KV_TASK_IMPLEMENTED &&
                 AI_PREFETCH_TASK_IMPLEMENTED,
  .prefetch = 1,
  .begin = prefetch_begin,  // 这里和 ai_student_path 不一样
  .load = student_load,
  .begin_kv_write = student_begin_kv_write,
  .store_kv = student_store_kv,
  .end_kv_write = student_end_kv_write,
  .begin_kv_read = student_begin_kv_read, // 先调用了 kv_begin_read 再调用 prefetch_begin
  .prefetch_next = student_prefetch_next, // 和下面的相同
  .prefetch_wait = student_prefetch_wait, // 原本是直接返回，现在多调用了 prefetch_wait
  .restore_kv = student_restore_kv,       // 实际调用 prefetch_restore 而非 kv_restore
  .end = student_end,                     // 实际多调用一步 prefetch_end
};

检查 prefetch=1 时的调用过程，可以归纳为如下

path->begin(&session, worker, requests)

path->begin_kv_write(&session)

for(request..)
  prefill_request(path, &session, worker, request, kv, &result.io);
    prefill_request(path,...)
      shard_feature(path,...);
        path->load(session, family, shard, block, io)
  path->store_kv(&session, request, kv, &result.io)

path->end_kv_write(&session)

path->begin_kv_read(&session)

if (path->prefetch)
  path->prefetch_next(&session, 0)
  path->prefetch_wait(&session, 0)

for(request..)
  path->restore_kv(&session, request, kv, &result.io)
  path->prefetch_next(&session, request + 1)
  path->prefetch_wait(&session, request + 1)

path->end(&session);

为了方便起见，在头文件中添加了 session->state[] 的宏定义

#define IF_PREFETCH 0
#define OPEN_FD 1
#define REQ_P 2
#define DATA_P 3
#define NEXT_REQ 4
#define PENDING_REQ 5

现在需要检查任务二中的 session->state[NEXT_REQ] 在这里能否复用

store 部分和 prefetch 无关，因此不需要考虑，主要考虑的是 restore 部分

  • path->begin_kv_read(&session): NEXT_REQ 会重置为 0
  • path->prefetch_next(&session, 0): 对比 0 和 NEXT_REQ，然后进行预取
  • path->prefetch_wait(&session, 0): 等待 request 返回 0
  • path->restore_kv(&session, request, kv, &result.io)
  • path->prefetch_next(&session, request + 1)
  • path->prefetch_wait(&session, request + 1)

restore_kv 这里的函数实现如下

static int
student_restore_kv(struct ai_session *session, int request,
                   struct kv_entry *kv, struct ai_io *io)
{
  if(session->state[0])
    return ai_student_prefetch_restore(session, request, kv, io);
  return ai_student_kv_restore(session, request, kv, io);
}

而 kv_restore 完成后会执行 session->state[NEXT_REQ]++;，这里 prefetch_restore 需要自行补充这一步

实现

指导书提供了 实现骨架 如下

// 父进程
prefetch_begin(session):
    验证当前 worker 尚未初始化 prefetch
    创建请求管道；失败则返回
    创建数据管道；失败则关闭第一条管道
    fork
    若 fork 失败：关闭两条管道的四个端点
    若位于子进程：关闭子进程不用的端点，进入 helper_loop
    若位于父进程：关闭父进程不用的端点
    保存父端 fd 和子 pid
    把 pending、ready 设为无效值，把窗口设为 EMPTY

prefetch_next(session, request):
    验证 request 在 [0, session->requests) 内
    验证窗口为 EMPTY，且编号符合顺序
    精确写出 request 编号
    只有写出成功后才记录 PENDING(request)
    立即返回，不从数据管道读取 KV

prefetch_wait(session, request):
    验证窗口为 PENDING(request)
    精确读取完成编号并与 request 比较
    精确读取一条完整 KV 到固定窗口
    只有两次读取都成功后才记录 READY(request)

prefetch_restore(session, request, kv, io):
    验证窗口为 READY(request)，kv 与 io 有效
    把固定窗口中的完整记录复制到 kv
    完整交付后增加 io->kv_read_bytes
    清除 ready 编号，回到 EMPTY

prefetch_end(session):
    若已初始化，通知辅助进程停止
    关闭父进程持有的请求写端和数据读端
    对辅助进程执行 wait
    复位 pid、fd、pending、ready 和初始化标志

// 辅助进程
helper_loop(session, request_read, data_write):
    根据 session->worker 得到本 worker 的 KV 文件名
    重新 open 一个只读 fd
    准备一条记录大小的固定 scratch 缓冲区
    expected = 0

    循环：
        从请求管道精确读取一个 request
        若为停止编号：跳出循环
        验证 request == expected 且没有越界
        从辅助进程自己的 fd 精确读取 2048 字节
        向数据管道精确写出完成编号
        向数据管道精确写出 2048 字节记录
        expected++

    释放 scratch，关闭文件和管道端点，exit

经过一番折腾之后，通过测试的代码如下，不要尝试父子进程共享 session 状态，因为它们是独立的地址空间，一方作出修改另一方并不知情；也没有必要尝试添加新的管道，子进程返回的 request 和数据都通过同一个管道传输即可。

void helper_loop(struct ai_session *session, int request_read, int data_write){
  char name[AI_KV_NAME_LEN];
  char buf[AI_KV_FILE_BYTES];
  ai_student_kv_name(name, session->worker);
  int f = open(name, O_RDONLY); // 自己的独立 fd，偏移从 0 开始
  int request;
  while (read(request_read, &request, sizeof(int)) == sizeof(int)) {      // 读 request
    if (request < 0){
      break;
    }
    if (read_exact(f, buf, AI_KV_FILE_BYTES) < 0)
      break;
    // 发送已准备就绪的 request
    if (write(data_write, &request, sizeof(int)) != sizeof(int))
      break;
    if (write(data_write, buf, AI_KV_FILE_BYTES) != AI_KV_FILE_BYTES)
      break;
  }
  // 读到 EOF：parent 关了 cmd 写端，说明该退出了
  close(f); close(request_read); close(data_write);
  exit(0);
}

int
ai_student_prefetch_begin(struct ai_session *session)
{
  int request_pipe[2], data_pipe[2];
  if (pipe(request_pipe))
    return -1;

  if (pipe(data_pipe)){
    close(request_pipe[0]);
    close(request_pipe[1]);
    return -1;
  }

  int pid = fork();
  if (pid < 0){
    close(request_pipe[0]);
    close(request_pipe[1]);
    close(data_pipe[0]);
    close(data_pipe[1]);
    return -1;
  }
  if (pid == 0) {
    // ===== 辅助进程 =====
    close(request_pipe[1]);                // 只读命令
    close(data_pipe[0]);                // 只写 ack
    helper_loop(session, request_pipe[0], data_pipe[1]);
  }

  // ===== parent =====
  close(request_pipe[0]);                 // parent 只写请求
  close(data_pipe[1]);                 // parent 只读数据
  session->state[REQ_P] = request_pipe[1];    // 记下写端
  session->state[DATA_P] = data_pipe[0];    // 记下读端
  session->state[NEXT_REQ] = 0;
  session->state[PENDING_REQ] = -1;       // idle
  return 0;
}

int
ai_student_prefetch_next(struct ai_session *session, int request)
{
  // 非阻塞地请求预取给定 request 的 KV 记录。
  if (request < 0){
    printf("invalid reqeust!\n");
    return -1;
  }
  if (session->state[PENDING_REQ] != -1 || request!=session->state[NEXT_REQ]){
    printf("invalid reqeust!\n");
    return -1;
  }
  if (write(session->state[REQ_P], &request, sizeof(int)) != sizeof(int)){   // 非阻塞：发送 request 完成就返回
    printf("send request failed!\n");
    return -1;
  }
  session->state[PENDING_REQ] = request;
  return 0;
}

int
ai_student_prefetch_wait(struct ai_session *session, int request)
{
  // 等待对应预取完成，且不得改变父 worker 的文件偏移。
  int read_request;
  if (session->state[PENDING_REQ] != request)
    return -1;
  if (read(session->state[DATA_P], &read_request, sizeof(int))!=sizeof(int)){
    printf("failed to read %d\n", read_request);
    return -1;
  }
  if (read_request!=request){
    printf("mismatch: request:%d, read:%d", request, read_request);
    return -1;
  }
  // ok
  session->state[PENDING_REQ] = -2; // ready!
  return 0; // 可读取
}

int
ai_student_prefetch_restore(struct ai_session *session, int request,
                            struct kv_entry *kv, struct ai_io *io)
{
  // 检查 request，restore之前必须保证 session->state[PENDING_REQ] == -2
  if (session->state[PENDING_REQ] != -2)
    return -1;
  if (request != session->state[NEXT_REQ])
    return -1;
  if (read_exact(session->state[DATA_P], kv, AI_KV_FILE_BYTES) != 0)
    return -1;
  io->kv_read_bytes += AI_KV_FILE_BYTES;
  session->state[PENDING_REQ] = -1;  // 辅助进程恢复空闲
  session->state[NEXT_REQ]++;
  return 0;
}

void
ai_student_prefetch_end(struct ai_session *session)
{
  // 关闭管道、等待辅助进程并释放全部预取资源。
  if (session->state[REQ_P] >= 0)
    close(session->state[REQ_P]);    // 关写端 → helper 读到 EOF → 退出
  session->state[REQ_P] = -1;
  wait(0);                        // 等待 helper 关闭
  if (session->state[DATA_P] >= 0)
    close(session->state[DATA_P]);
  session->state[DATA_P] = -1;
  session->state[NEXT_REQ] = -1;
}

测试

$ modelprep
MODELPREP: OK shards=74 bytes=75776 checksum=1593388032
$ aiinfer compare
AIINFER_COMPARE: verify OK checksum=1717503730
$ aiinfer prefetch
AIINFER: verify OK mode=prefetch
AIINFER_METRICS mode=prefetch workers=3 requests=24 elapsed_ticks=41 throughput_milli=17560 p95_ticks=13 kmem_spins=0 bcache_spins=529 total_spins=529 model_read_bytes=113664 embed_read_bytes=113664 kv_write_bytes=147456 kv_read_bytes=147456 checksum=1717503730
$

运行下面的指令查看 prefetch 的性能改善

python3 tools/grade_ai.py --runs 3 --bonus

  "baseline_median": {
    "bcache_spins": 144336,
    "checksum": 1717503730,
    "elapsed_ticks": 546,
    "embed_read_bytes": 2359296,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 2359296,
    "p95_ticks": 405,
    "requests": 24,
    "throughput_milli": 1318,
    "total_spins": 144336,
    "workers": 3
  },
  "prefetch_median": {
    "bcache_spins": 598,
    "checksum": 1717503730,
    "elapsed_ticks": 42,
    "embed_read_bytes": 113664,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 113664,
    "p95_ticks": 11,
    "requests": 24,
    "throughput_milli": 17142,
    "total_spins": 598,
    "workers": 3
  },

吞吐倍率     = student throughput / baseline throughput = 17142/1318 = 13.006069802731
争用改善倍率 = baseline total_spins / student total_spins = 144336/598 = 2,415.2775919732
p95 改善倍率 = baseline p95 / student p95 = 405/11 = 36.8181818182

附录：测试结果

原题测试

xv6 kernel is booting

hart 1 starting
hart 2 starting
init: starting sh
$ kalloctest
start test1
test1 results:
--- lock kmem/bcache stats
lock: kmem: #fetch-and-add 3896751 #acquire() 433016
lock: bcache: #fetch-and-add 0 #acquire() 1312
--- top 5 contended locks:
lock: kmem: #fetch-and-add 3896751 #acquire() 433016
lock: proc: #fetch-and-add 210070 #acquire() 87197
lock: proc: #fetch-and-add 135980 #acquire() 87197
lock: proc: #fetch-and-add 134618 #acquire() 87197
lock: proc: #fetch-and-add 116582 #acquire() 87197
tot= 3896751
test1 FAIL
start test2
total free number of pages: 32499 (out of 32768)
.....
test2 OK
$ usertests sbrkmuch
usertests starting
test sbrkmuch: OK
ALL TESTS PASSED
$ bcachetest
start test0
test0 results:
--- lock kmem/bcache stats
lock: kmem: #fetch-and-add 3896751 #acquire() 3929833
lock: bcache: #fetch-and-add 1296098 #acquire() 66476
--- top 5 contended locks:
lock: proc: #fetch-and-add 51284292 #acquire() 2172131
lock: proc: #fetch-and-add 14378138 #acquire() 2168519
lock: proc: #fetch-and-add 14355023 #acquire() 2168519
lock: proc: #fetch-and-add 14239873 #acquire() 2168518
lock: proc: #fetch-and-add 13545737 #acquire() 2168519
tot= 5192849
test0: FAIL
start test1
test1 OK
$ usertests
usertests starting
test manywrites: OK
test execout: OK
test copyin: OK
test copyout: OK
test copyinstr1: OK
test copyinstr2: OK
test copyinstr3: OK
test rwsbrk: OK
test truncate1: OK
test truncate2: OK
test truncate3: OK
test reparent2: OK
test pgbug: OK
test sbrkbugs: usertrap(): unexpected scause 0x000000000000000c pid=3253
            sepc=0x000000000000573e stval=0x000000000000573e
usertrap(): unexpected scause 0x000000000000000c pid=3254
            sepc=0x000000000000573e stval=0x000000000000573e
OK
test badarg: OK
test reparent: OK
test twochildren: OK
test forkfork: OK
test forkforkfork: OK
test argptest: OK
test createdelete: OK
test linkunlink: OK
test linktest: OK
test unlinkread: OK
test concreate: OK
test subdir: OK
test fourfiles: OK
test sharedfd: OK
test dirtest: OK
test exectest: OK
test bigargtest: OK
test bigwrite: OK
test bsstest: OK
test sbrkbasic: OK
test sbrkmuch: OK
test kernmem: usertrap(): unexpected scause 0x000000000000000d pid=6234
            sepc=0x0000000000002198 stval=0x0000000080000000
usertrap(): unexpected scause 0x000000000000000d pid=6235
            sepc=0x0000000000002198 stval=0x000000008000c350
usertrap(): unexpected scause 0x000000000000000d pid=6236
            sepc=0x0000000000002198 stval=0x00000000800186a0
usertrap(): unexpected scause 0x000000000000000d pid=6237
            sepc=0x0000000000002198 stval=0x00000000800249f0
usertrap(): unexpected scause 0x000000000000000d pid=6238
            sepc=0x0000000000002198 stval=0x0000000080030d40
usertrap(): unexpected scause 0x000000000000000d pid=6239
            sepc=0x0000000000002198 stval=0x000000008003d090
usertrap(): unexpected scause 0x000000000000000d pid=6240
            sepc=0x0000000000002198 stval=0x00000000800493e0
usertrap(): unexpected scause 0x000000000000000d pid=6241
            sepc=0x0000000000002198 stval=0x0000000080055730
usertrap(): unexpected scause 0x000000000000000d pid=6242
            sepc=0x0000000000002198 stval=0x0000000080061a80
usertrap(): unexpected scause 0x000000000000000d pid=6243
            sepc=0x0000000000002198 stval=0x000000008006ddd0
usertrap(): unexpected scause 0x000000000000000d pid=6244
            sepc=0x0000000000002198 stval=0x000000008007a120
usertrap(): unexpected scause 0x000000000000000d pid=6245
            sepc=0x0000000000002198 stval=0x0000000080086470
usertrap(): unexpected scause 0x000000000000000d pid=6246
            sepc=0x0000000000002198 stval=0x00000000800927c0
usertrap(): unexpected scause 0x000000000000000d pid=6247
            sepc=0x0000000000002198 stval=0x000000008009eb10
usertrap(): unexpected scause 0x000000000000000d pid=6248
            sepc=0x0000000000002198 stval=0x00000000800aae60
usertrap(): unexpected scause 0x000000000000000d pid=6249
            sepc=0x0000000000002198 stval=0x00000000800b71b0
usertrap(): unexpected scause 0x000000000000000d pid=6250
            sepc=0x0000000000002198 stval=0x00000000800c3500
usertrap(): unexpected scause 0x000000000000000d pid=6251
            sepc=0x0000000000002198 stval=0x00000000800cf850
usertrap(): unexpected scause 0x000000000000000d pid=6252
            sepc=0x0000000000002198 stval=0x00000000800dbba0
usertrap(): unexpected scause 0x000000000000000d pid=6253
            sepc=0x0000000000002198 stval=0x00000000800e7ef0
usertrap(): unexpected scause 0x000000000000000d pid=6254
            sepc=0x0000000000002198 stval=0x00000000800f4240
usertrap(): unexpected scause 0x000000000000000d pid=6255
            sepc=0x0000000000002198 stval=0x0000000080100590
usertrap(): unexpected scause 0x000000000000000d pid=6256
            sepc=0x0000000000002198 stval=0x000000008010c8e0
usertrap(): unexpected scause 0x000000000000000d pid=6257
            sepc=0x0000000000002198 stval=0x0000000080118c30
usertrap(): unexpected scause 0x000000000000000d pid=6258
            sepc=0x0000000000002198 stval=0x0000000080124f80
usertrap(): unexpected scause 0x000000000000000d pid=6259
            sepc=0x0000000000002198 stval=0x00000000801312d0
usertrap(): unexpected scause 0x000000000000000d pid=6260
            sepc=0x0000000000002198 stval=0x000000008013d620
usertrap(): unexpected scause 0x000000000000000d pid=6261
            sepc=0x0000000000002198 stval=0x0000000080149970
usertrap(): unexpected scause 0x000000000000000d pid=6262
            sepc=0x0000000000002198 stval=0x0000000080155cc0
usertrap(): unexpected scause 0x000000000000000d pid=6263
            sepc=0x0000000000002198 stval=0x0000000080162010
usertrap(): unexpected scause 0x000000000000000d pid=6264
            sepc=0x0000000000002198 stval=0x000000008016e360
usertrap(): unexpected scause 0x000000000000000d pid=6265
            sepc=0x0000000000002198 stval=0x000000008017a6b0
usertrap(): unexpected scause 0x000000000000000d pid=6266
            sepc=0x0000000000002198 stval=0x0000000080186a00
usertrap(): unexpected scause 0x000000000000000d pid=6267
            sepc=0x0000000000002198 stval=0x0000000080192d50
usertrap(): unexpected scause 0x000000000000000d pid=6268
            sepc=0x0000000000002198 stval=0x000000008019f0a0
usertrap(): unexpected scause 0x000000000000000d pid=6269
            sepc=0x0000000000002198 stval=0x00000000801ab3f0
usertrap(): unexpected scause 0x000000000000000d pid=6270
            sepc=0x0000000000002198 stval=0x00000000801b7740
usertrap(): unexpected scause 0x000000000000000d pid=6271
            sepc=0x0000000000002198 stval=0x00000000801c3a90
usertrap(): unexpected scause 0x000000000000000d pid=6272
            sepc=0x0000000000002198 stval=0x00000000801cfde0
usertrap(): unexpected scause 0x000000000000000d pid=6273
            sepc=0x0000000000002198 stval=0x00000000801dc130
OK
test sbrkfail: usertrap(): unexpected scause 0x000000000000000d pid=6285
            sepc=0x0000000000004256 stval=0x0000000000012000
OK
test sbrkarg: OK
test validatetest: OK
test stacktest: usertrap(): unexpected scause 0x000000000000000d pid=6289
            sepc=0x0000000000002308 stval=0x000000000000fb90
OK
test opentest: OK
test writetest: OK
test writebig: OK
test createtest: OK
test openiput: OK
test exitiput: OK
test iput: OK
test mem: OK
test pipe1: OK
test preempt: kill... wait... OK
test exitwait: OK
test rmdot: OK
test fourteen: OK
test bigfile: OK
test dirfile: OK
test iref: OK
test forktest: OK
test bigdir: OK
ALL TESTS PASSED
$

全部修改后测试

xv6 kernel is booting

kmem0 have all free_pages: 32727
hart 2 starting
hart 1 starting
init: starting sh
$ kalloctest
start test1
test1 results:
--- lock kmem/bcache stats
lock: kmem0: #fetch-and-add 0 #acquire() 160393
lock: kmem1: #fetch-and-add 0 #acquire() 136444
lock: kmem2: #fetch-and-add 0 #acquire() 136185
lock: bcache0: #fetch-and-add 0 #acquire() 2
lock: bcache1: #fetch-and-add 0 #acquire() 4
lock: bcache2: #fetch-and-add 0 #acquire() 12
lock: bcache3: #fetch-and-add 0 #acquire() 8
lock: bcache4: #fetch-and-add 0 #acquire() 8
lock: bcache5: #fetch-and-add 0 #acquire() 8
lock: bcache6: #fetch-and-add 0 #acquire() 82
lock: bcache7: #fetch-and-add 0 #acquire() 82
lock: bcache8: #fetch-and-add 0 #acquire() 1082
lock: bcache9: #fetch-and-add 0 #acquire() 4
lock: bcache10: #fetch-and-add 0 #acquire() 4
lock: bcache11: #fetch-and-add 0 #acquire() 12
lock: bcache12: #fetch-and-add 0 #acquire() 4
--- top 5 contended locks:
lock: proc: #fetch-and-add 280724 #acquire() 99487
lock: proc: #fetch-and-add 221596 #acquire() 99489
lock: proc: #fetch-and-add 167785 #acquire() 99506
lock: proc: #fetch-and-add 161814 #acquire() 99488
lock: proc: #fetch-and-add 161555 #acquire() 99488
tot= 0
test1 OK
start test2
total free number of pages: 32499 (out of 32768)
.....
test2 OK
$ usertests sbrkmuch
usertests starting
test sbrkmuch: OK
ALL TESTS PASSED
$ bcachetest
start test0
test0 results:
--- lock kmem/bcache stats
lock: kmem0: #fetch-and-add 0 #acquire() 1444341
lock: kmem1: #fetch-and-add 0 #acquire() 460656
lock: kmem2: #fetch-and-add 0 #acquire() 2028366
lock: bcache0: #fetch-and-add 0 #acquire() 4180
lock: bcache1: #fetch-and-add 0 #acquire() 6184
lock: bcache2: #fetch-and-add 0 #acquire() 6337
lock: bcache3: #fetch-and-add 0 #acquire() 6332
lock: bcache4: #fetch-and-add 0 #acquire() 6386
lock: bcache5: #fetch-and-add 0 #acquire() 6328
lock: bcache6: #fetch-and-add 0 #acquire() 6751
lock: bcache7: #fetch-and-add 62 #acquire() 4626
lock: bcache8: #fetch-and-add 59 #acquire() 6844
lock: bcache9: #fetch-and-add 0 #acquire() 2122
lock: bcache10: #fetch-and-add 0 #acquire() 4126
lock: bcache11: #fetch-and-add 0 #acquire() 2126
lock: bcache12: #fetch-and-add 0 #acquire() 4136
--- top 5 contended locks:
lock: proc: #fetch-and-add 55180262 #acquire() 2483724
lock: proc: #fetch-and-add 14130223 #acquire() 2479768
lock: proc: #fetch-and-add 13543017 #acquire() 2479783
lock: proc: #fetch-and-add 13342974 #acquire() 2479727
lock: proc: #fetch-and-add 13148564 #acquire() 2479727
tot= 121
test0: OK
start test1
test1 OK
$ usertests
usertests starting
test manywrites: OK
test execout: OK
test copyin: OK
test copyout: OK
test copyinstr1: OK
test copyinstr2: OK
test copyinstr3: OK
test rwsbrk: OK
test truncate1: OK
test truncate2: OK
test truncate3: OK
test reparent2: OK
test pgbug: OK
test sbrkbugs: usertrap(): unexpected scause 0x000000000000000c pid=3253
            sepc=0x000000000000573e stval=0x000000000000573e
usertrap(): unexpected scause 0x000000000000000c pid=3254
            sepc=0x000000000000573e stval=0x000000000000573e
OK
test badarg: OK
test reparent: OK
test twochildren: OK
test forkfork: OK
test forkforkfork: OK
test argptest: OK
test createdelete: OK
test linkunlink: OK
test linktest: OK
test unlinkread: OK
test concreate: OK
test subdir: OK
test fourfiles: OK
test sharedfd: OK
test dirtest: OK
test exectest: OK
test bigargtest: OK
test bigwrite: OK
test bsstest: OK
test sbrkbasic: OK
test sbrkmuch: OK
test kernmem: usertrap(): unexpected scause 0x000000000000000d pid=6234
            sepc=0x0000000000002198 stval=0x0000000080000000
usertrap(): unexpected scause 0x000000000000000d pid=6235
            sepc=0x0000000000002198 stval=0x000000008000c350
usertrap(): unexpected scause 0x000000000000000d pid=6236
            sepc=0x0000000000002198 stval=0x00000000800186a0
usertrap(): unexpected scause 0x000000000000000d pid=6237
            sepc=0x0000000000002198 stval=0x00000000800249f0
usertrap(): unexpected scause 0x000000000000000d pid=6238
            sepc=0x0000000000002198 stval=0x0000000080030d40
usertrap(): unexpected scause 0x000000000000000d pid=6239
            sepc=0x0000000000002198 stval=0x000000008003d090
usertrap(): unexpected scause 0x000000000000000d pid=6240
            sepc=0x0000000000002198 stval=0x00000000800493e0
usertrap(): unexpected scause 0x000000000000000d pid=6241
            sepc=0x0000000000002198 stval=0x0000000080055730
usertrap(): unexpected scause 0x000000000000000d pid=6242
            sepc=0x0000000000002198 stval=0x0000000080061a80
usertrap(): unexpected scause 0x000000000000000d pid=6243
            sepc=0x0000000000002198 stval=0x000000008006ddd0
usertrap(): unexpected scause 0x000000000000000d pid=6244
            sepc=0x0000000000002198 stval=0x000000008007a120
usertrap(): unexpected scause 0x000000000000000d pid=6245
            sepc=0x0000000000002198 stval=0x0000000080086470
usertrap(): unexpected scause 0x000000000000000d pid=6246
            sepc=0x0000000000002198 stval=0x00000000800927c0
usertrap(): unexpected scause 0x000000000000000d pid=6247
            sepc=0x0000000000002198 stval=0x000000008009eb10
usertrap(): unexpected scause 0x000000000000000d pid=6248
            sepc=0x0000000000002198 stval=0x00000000800aae60
usertrap(): unexpected scause 0x000000000000000d pid=6249
            sepc=0x0000000000002198 stval=0x00000000800b71b0
usertrap(): unexpected scause 0x000000000000000d pid=6250
            sepc=0x0000000000002198 stval=0x00000000800c3500
usertrap(): unexpected scause 0x000000000000000d pid=6251
            sepc=0x0000000000002198 stval=0x00000000800cf850
usertrap(): unexpected scause 0x000000000000000d pid=6252
            sepc=0x0000000000002198 stval=0x00000000800dbba0
usertrap(): unexpected scause 0x000000000000000d pid=6253
            sepc=0x0000000000002198 stval=0x00000000800e7ef0
usertrap(): unexpected scause 0x000000000000000d pid=6254
            sepc=0x0000000000002198 stval=0x00000000800f4240
usertrap(): unexpected scause 0x000000000000000d pid=6255
            sepc=0x0000000000002198 stval=0x0000000080100590
usertrap(): unexpected scause 0x000000000000000d pid=6256
            sepc=0x0000000000002198 stval=0x000000008010c8e0
usertrap(): unexpected scause 0x000000000000000d pid=6257
            sepc=0x0000000000002198 stval=0x0000000080118c30
usertrap(): unexpected scause 0x000000000000000d pid=6258
            sepc=0x0000000000002198 stval=0x0000000080124f80
usertrap(): unexpected scause 0x000000000000000d pid=6259
            sepc=0x0000000000002198 stval=0x00000000801312d0
usertrap(): unexpected scause 0x000000000000000d pid=6260
            sepc=0x0000000000002198 stval=0x000000008013d620
usertrap(): unexpected scause 0x000000000000000d pid=6261
            sepc=0x0000000000002198 stval=0x0000000080149970
usertrap(): unexpected scause 0x000000000000000d pid=6262
            sepc=0x0000000000002198 stval=0x0000000080155cc0
usertrap(): unexpected scause 0x000000000000000d pid=6263
            sepc=0x0000000000002198 stval=0x0000000080162010
usertrap(): unexpected scause 0x000000000000000d pid=6264
            sepc=0x0000000000002198 stval=0x000000008016e360
usertrap(): unexpected scause 0x000000000000000d pid=6265
            sepc=0x0000000000002198 stval=0x000000008017a6b0
usertrap(): unexpected scause 0x000000000000000d pid=6266
            sepc=0x0000000000002198 stval=0x0000000080186a00
usertrap(): unexpected scause 0x000000000000000d pid=6267
            sepc=0x0000000000002198 stval=0x0000000080192d50
usertrap(): unexpected scause 0x000000000000000d pid=6268
            sepc=0x0000000000002198 stval=0x000000008019f0a0
usertrap(): unexpected scause 0x000000000000000d pid=6269
            sepc=0x0000000000002198 stval=0x00000000801ab3f0
usertrap(): unexpected scause 0x000000000000000d pid=6270
            sepc=0x0000000000002198 stval=0x00000000801b7740
usertrap(): unexpected scause 0x000000000000000d pid=6271
            sepc=0x0000000000002198 stval=0x00000000801c3a90
usertrap(): unexpected scause 0x000000000000000d pid=6272
            sepc=0x0000000000002198 stval=0x00000000801cfde0
usertrap(): unexpected scause 0x000000000000000d pid=6273
            sepc=0x0000000000002198 stval=0x00000000801dc130
OK
test sbrkfail: usertrap(): unexpected scause 0x000000000000000d pid=6285
            sepc=0x0000000000004256 stval=0x0000000000012000
OK
test sbrkarg: OK
test validatetest: OK
test stacktest: usertrap(): unexpected scause 0x000000000000000d pid=6289
            sepc=0x0000000000002308 stval=0x000000000000fb90
OK
test opentest: OK
test writetest: OK
test writebig: OK
test createtest: OK
test openiput: OK
test exitiput: OK
test iput: OK
test mem: OK
test pipe1: OK
test preempt: kill... wait... OK
test exitwait: OK
test rmdot: OK
test fourteen: OK
test bigfile: OK
test dirfile: OK
test iref: OK
test forktest: OK
test bigdir: OK
ALL TESTS PASSED
$

make grade

make grade

附加题

make grade-ai

附加题测试结果

最终测试结果如下

init: starting sh
$ modelprep
MODELPREP: OK shards=74 bytes=75776 checksum=1593388032
$ aimodeltest
AIMODELTEST: verify OK shards=74 checksum=1593388032
$ aikvtest
AIKVTEST: request order OK
AIKVTEST: verify OK requests=4 bytes=8192
$ aiinfer compare -w 3 -r 24
AIINFER_COMPARE: verify OK checksum=1717503730
$ aiinfer prefetch -w 3 -r 24
AIINFER: verify OK mode=prefetch
AIINFER_METRICS mode=prefetch workers=3 requests=24 elapsed_ticks=37 throughput_milli=19459 p95_ticks=10 kmem_spins=0 bcache_spins=373 total_spins=373 model_read_bytes=113664 embed_read_bytes=113664 kv_write_bytes=147456 kv_read_bytes=147456 checksum=1717503730
$

ubuntu@VM-0-6-ubuntu:~/workspace/xv6-oslabs-hitsz$ sudo python3 tools/grade_ai.py --runs 3
{
  "baseline_median": {
    "bcache_spins": 74667,
    "checksum": 1717503730,
    "elapsed_ticks": 518,
    "embed_read_bytes": 2359296,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 2359296,
    "p95_ticks": 400,
    "requests": 24,
    "throughput_milli": 1389,
    "total_spins": 74667,
    "workers": 3
  },
  "baseline_samples": [
    {
      "bcache_spins": 62030,
      "checksum": 1717503730,
      "elapsed_ticks": 521,
      "embed_read_bytes": 2359296,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 2359296,
      "p95_ticks": 407,
      "requests": 24,
      "throughput_milli": 1381,
      "total_spins": 62030,
      "workers": 3
    },
    {
      "bcache_spins": 74667,
      "checksum": 1717503730,
      "elapsed_ticks": 518,
      "embed_read_bytes": 2359296,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 2359296,
      "p95_ticks": 389,
      "requests": 24,
      "throughput_milli": 1389,
      "total_spins": 74667,
      "workers": 3
    },
    {
      "bcache_spins": 313904,
      "checksum": 1717503730,
      "elapsed_ticks": 516,
      "embed_read_bytes": 2359296,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 2359296,
      "p95_ticks": 400,
      "requests": 24,
      "throughput_milli": 1395,
      "total_spins": 313904,
      "workers": 3
    }
  ],
  "capped_ratios": {
    "p95": 2.0,
    "spins": 8.0,
    "throughput": 2.0
  },
  "performance_score": 6,
  "performance_score_max": 6,
  "required_ratios": {
    "p95": 36.36363636363637,
    "spins": 202.89945652173913,
    "throughput": 12.958963282937365
  },
  "runs": 3,
  "student_median": {
    "bcache_spins": 368,
    "checksum": 1717503730,
    "elapsed_ticks": 40,
    "embed_read_bytes": 113664,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 113664,
    "p95_ticks": 11,
    "requests": 24,
    "throughput_milli": 18000,
    "total_spins": 368,
    "workers": 3
  },
  "student_samples": [
    {
      "bcache_spins": 64320,
      "checksum": 1717503730,
      "elapsed_ticks": 40,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 10,
      "requests": 24,
      "throughput_milli": 18000,
      "total_spins": 64320,
      "workers": 3
    },
    {
      "bcache_spins": 368,
      "checksum": 1717503730,
      "elapsed_ticks": 40,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 11,
      "requests": 24,
      "throughput_milli": 18000,
      "total_spins": 368,
      "workers": 3
    },
    {
      "bcache_spins": 302,
      "checksum": 1717503730,
      "elapsed_ticks": 38,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 11,
      "requests": 24,
      "throughput_milli": 18947,
      "total_spins": 302,
      "workers": 3
    }
  ],
  "weighted_ratio": 3.8
}

ubuntu@VM-0-6-ubuntu:~/workspace/xv6-oslabs-hitsz$ sudo python3 tools/grade_ai.py --runs 3 --bonus
{
  "baseline_median": {
    "bcache_spins": 144336,
    "checksum": 1717503730,
    "elapsed_ticks": 546,
    "embed_read_bytes": 2359296,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 2359296,
    "p95_ticks": 405,
    "requests": 24,
    "throughput_milli": 1318,
    "total_spins": 144336,
    "workers": 3
  },
  "baseline_samples": [
    {
      "bcache_spins": 411228,
      "checksum": 1717503730,
      "elapsed_ticks": 546,
      "embed_read_bytes": 2359296,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 2359296,
      "p95_ticks": 405,
      "requests": 24,
      "throughput_milli": 1318,
      "total_spins": 411228,
      "workers": 3
    },
    {
      "bcache_spins": 144336,
      "checksum": 1717503730,
      "elapsed_ticks": 555,
      "embed_read_bytes": 2359296,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 2359296,
      "p95_ticks": 441,
      "requests": 24,
      "throughput_milli": 1297,
      "total_spins": 144336,
      "workers": 3
    },
    {
      "bcache_spins": 9732,
      "checksum": 1717503730,
      "elapsed_ticks": 507,
      "embed_read_bytes": 2359296,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 2359296,
      "p95_ticks": 382,
      "requests": 24,
      "throughput_milli": 1420,
      "total_spins": 9732,
      "workers": 3
    }
  ],
  "bonus_ratios": {
    "p95": 1.0909090909090908,
    "spins": 1.3729096989966556,
    "throughput": 0.9285520827690807
  },
  "capped_ratios": {
    "p95": 2.0,
    "spins": 8.0,
    "throughput": 2.0
  },
  "performance_score": 6,
  "performance_score_max": 6,
  "prefetch_median": {
    "bcache_spins": 598,
    "checksum": 1717503730,
    "elapsed_ticks": 42,
    "embed_read_bytes": 113664,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 113664,
    "p95_ticks": 11,
    "requests": 24,
    "throughput_milli": 17142,
    "total_spins": 598,
    "workers": 3
  },
  "prefetch_samples": [
    {
      "bcache_spins": 13444,
      "checksum": 1717503730,
      "elapsed_ticks": 43,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 11,
      "requests": 24,
      "throughput_milli": 16744,
      "total_spins": 13444,
      "workers": 3
    },
    {
      "bcache_spins": 321,
      "checksum": 1717503730,
      "elapsed_ticks": 36,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 10,
      "requests": 24,
      "throughput_milli": 20000,
      "total_spins": 321,
      "workers": 3
    },
    {
      "bcache_spins": 598,
      "checksum": 1717503730,
      "elapsed_ticks": 42,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 11,
      "requests": 24,
      "throughput_milli": 17142,
      "total_spins": 598,
      "workers": 3
    }
  ],
  "required_ratios": {
    "p95": 33.75,
    "spins": 175.80511571254567,
    "throughput": 14.006828528072838
  },
  "runs": 3,
  "student_median": {
    "bcache_spins": 821,
    "checksum": 1717503730,
    "elapsed_ticks": 39,
    "embed_read_bytes": 113664,
    "kmem_spins": 0,
    "kv_read_bytes": 147456,
    "kv_write_bytes": 147456,
    "model_read_bytes": 113664,
    "p95_ticks": 12,
    "requests": 24,
    "throughput_milli": 18461,
    "total_spins": 821,
    "workers": 3
  },
  "student_samples": [
    {
      "bcache_spins": 821,
      "checksum": 1717503730,
      "elapsed_ticks": 36,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 11,
      "requests": 24,
      "throughput_milli": 20000,
      "total_spins": 821,
      "workers": 3
    },
    {
      "bcache_spins": 455,
      "checksum": 1717503730,
      "elapsed_ticks": 39,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 12,
      "requests": 24,
      "throughput_milli": 18461,
      "total_spins": 455,
      "workers": 3
    },
    {
      "bcache_spins": 26001,
      "checksum": 1717503730,
      "elapsed_ticks": 40,
      "embed_read_bytes": 113664,
      "kmem_spins": 0,
      "kv_read_bytes": 147456,
      "kv_write_bytes": 147456,
      "model_read_bytes": 113664,
      "p95_ticks": 12,
      "requests": 24,
      "throughput_milli": 18000,
      "total_spins": 26001,
      "workers": 3
    }
  ],
  "weighted_ratio": 3.8
}
